PRODUCTS DETAILS:

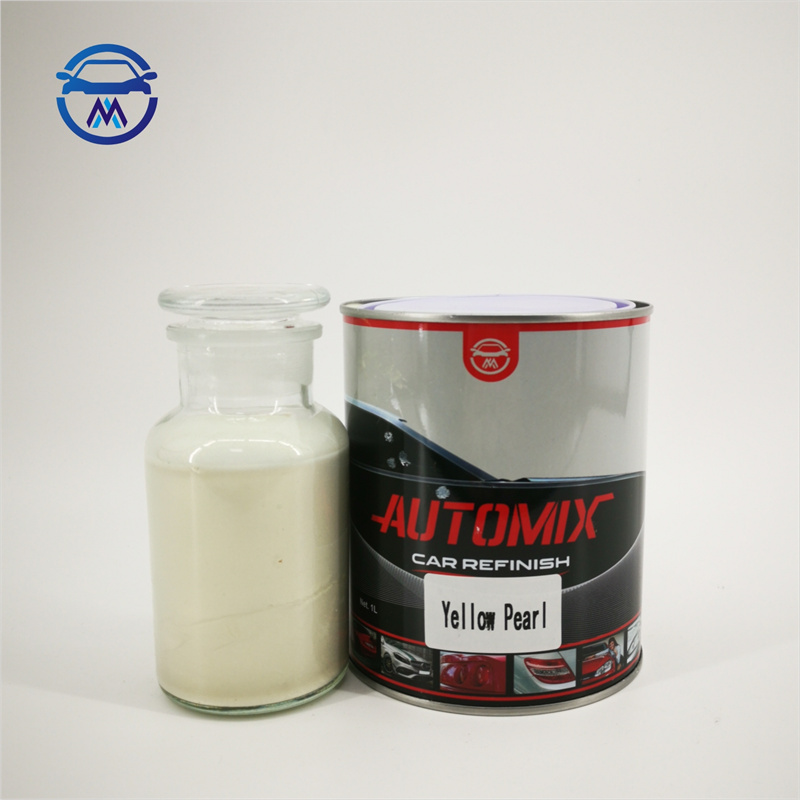

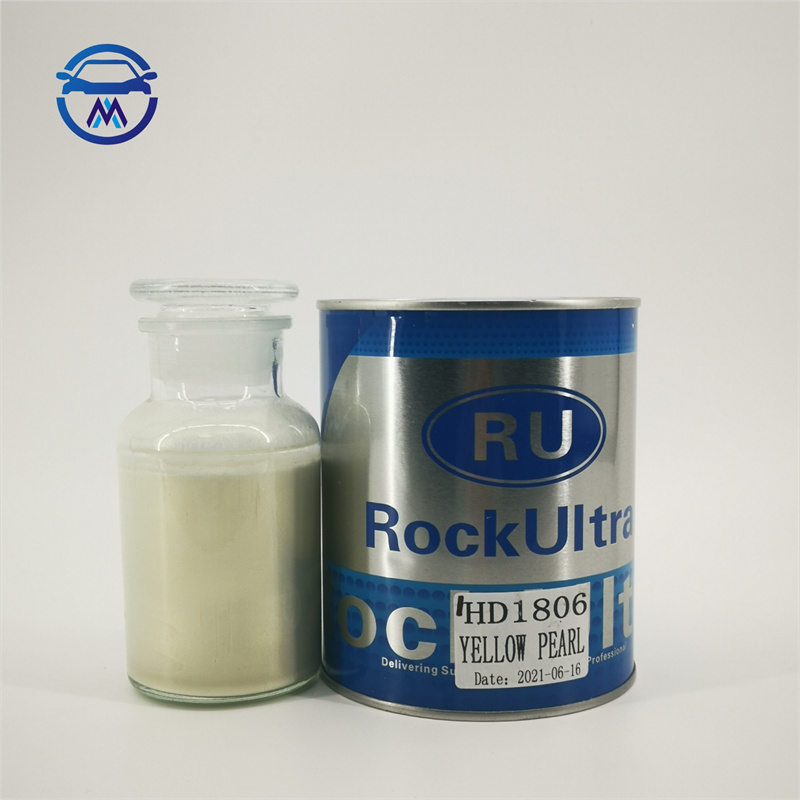

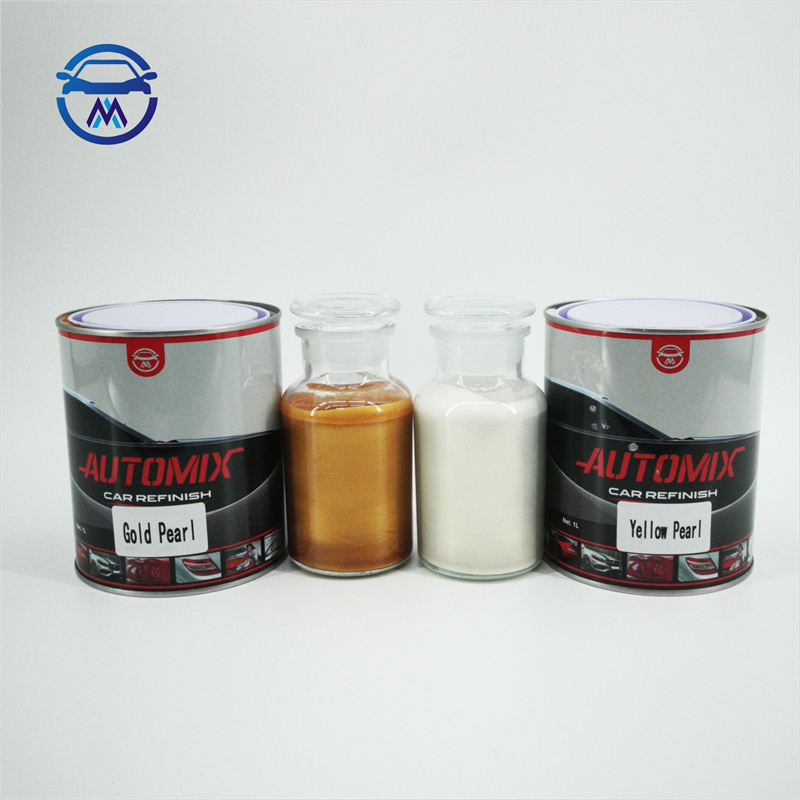

1K Colors, Gold Pearl & Yellow Pearl.
Characteristic: 1K basecoat colors with excellent leveling property, easy construction,
excellent adhesion power and coverage power, can match all kinds of solid colors, metallic and pearl effect.
Mainly applies to intermediate cars, MPV and bus.
|
Substrates |
Well-Sanded, Completely dried and good existing finishes as bellow: A original paint B. Old paint firm C. 1K or2k primer |
|||||||
|
Surface Cleaning |
Wash by warm soap, remove wax, silicon and other contaminations with degreaser, sanding with P800-P1000, wash with clean water then keep dry; again with degreaser. |
||||||||
|
Mixing Ratio |
Basecoat Colors |
Thinner |
|||||||
|
1 |
1 |
||||||||
|
＜15°C |
1K basecoat colors |
Fast Thinner |
|||||||
|
15°C -30°C |
1K basecoat colors |
Standard Thinner |
|||||||
|
＞30°C |
1K basecoat colors |
Slow Thinner |
|||||||
|
Spray Viscosity |
14-16s to drop off, in 4# viscosity cup at 25°C, |
||||||||
|
Re- Treatment |
After spray, allow 10-20 minutes air-drying time, then spray clear coat at once. |
||||||||
|
Spray Gun Set Up |
Gravity Feed: 1.2-1.5mm 3-5kg/cm2 Suction Feed: 1.4-1.6mm 3-5kg/cm2 |
||||||||
|
Spray Technology |
Coats And Thickness: 2-3 coats, total 15-20um. Flash-Off Time: At 25°C, 5-10 minutes between two coats, it depends on temperature and paint film. |
||||||||
|
Shelf Life |
2 years in original sealed can, cool and dry place at 25°C. |
||||||||
|
Package |
1L×12 or 3.75L×4 |
||||||||
Note:
1. The substrate must be cleaned and sanded before spray, wet sanding P800-1000 and then dry.
2. At ambient temperature higher than 30°C, add appropriate Retarder Solvent into thinner to avoid blushing.
For more details, please refer to technical data sheet of Retarder Solvent.

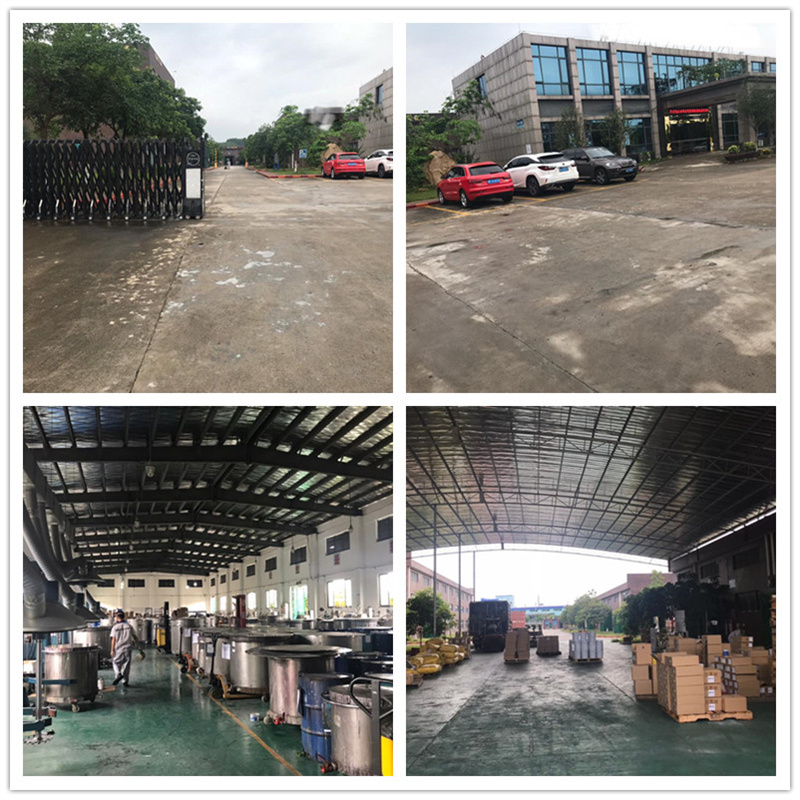

FACTORY:

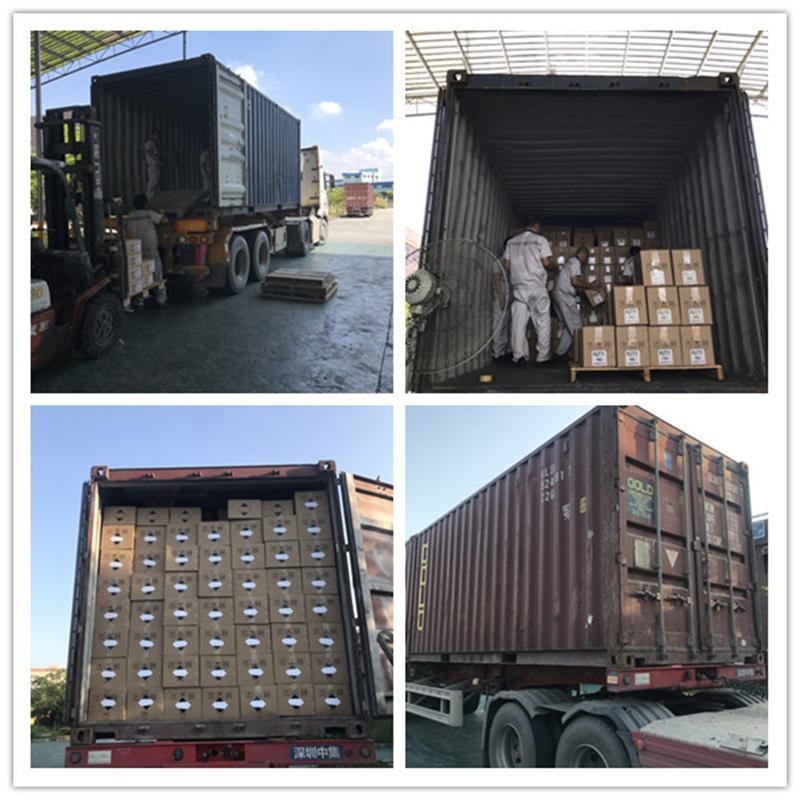

LOADING:
