AUTOMOTIVE REFINISH HVLP 827 Air Spray Gun 1.4mm 1.7mm

Products Inquiry
Click Refresh Verification Code

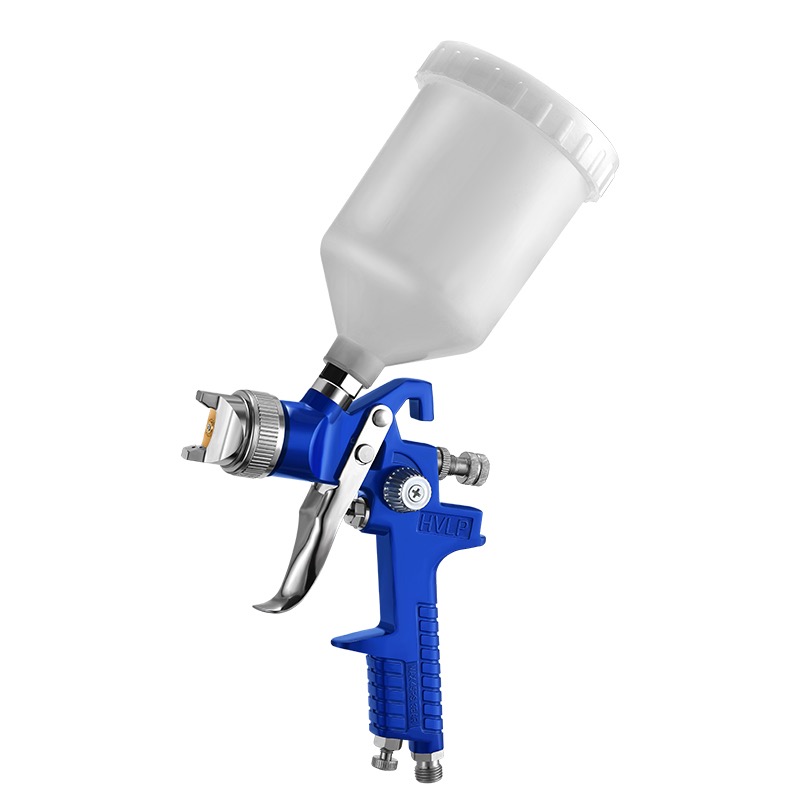

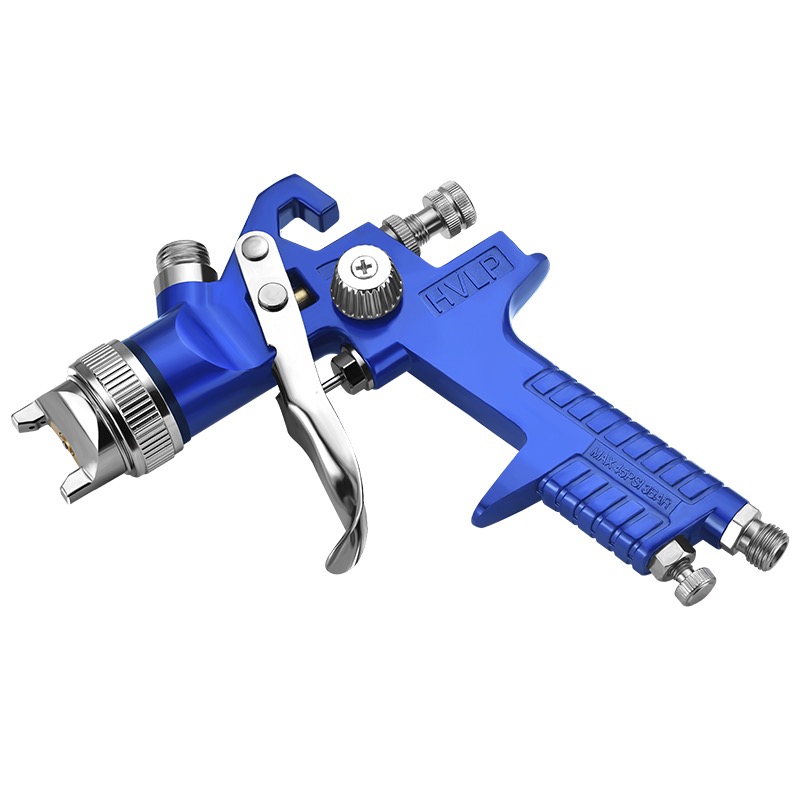

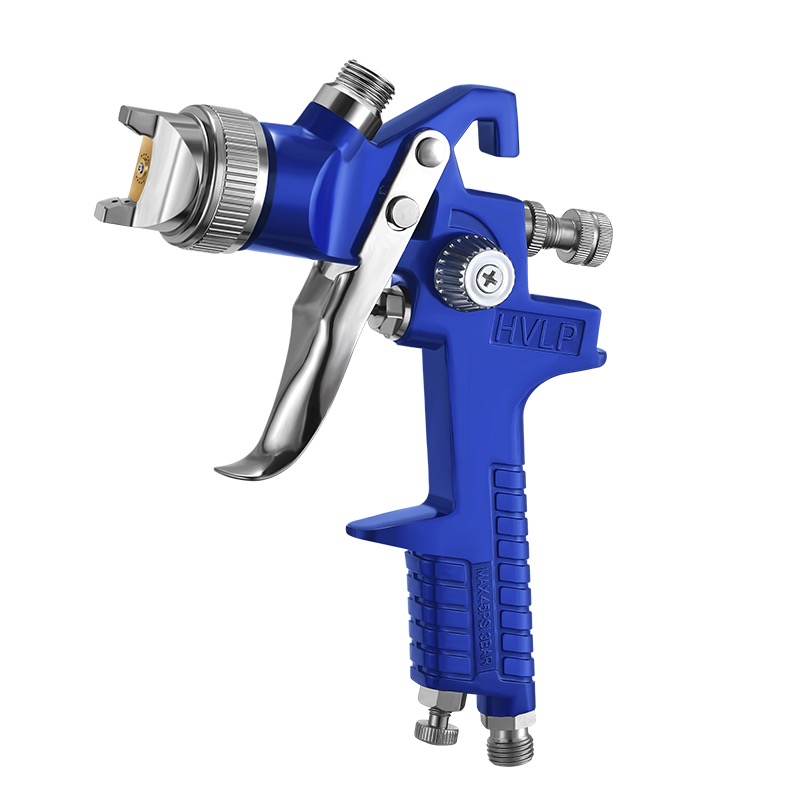

   This professional spray gun is excellent for spraying basecoat or other high viscosity coatings for automotive industry, equipment and furniture paint applications. The in-built regulator ensures that you get the perfect flow of paint every time! This optimized flow rate means your operating costs will be reduced - no more wasted paint.


  • HVLP Type & High Atomization with Low Nozzle Air Pressure: High volume low pressure and excellent spraying efficiency, saves paint and protects the environment.
  • With 3 Built-in Control Knobs: Fluid control regulates amount of paint sprayed, Pattern control adjusts the fan pattern size, and air adjustment valve provides versatility to adjust air flow.

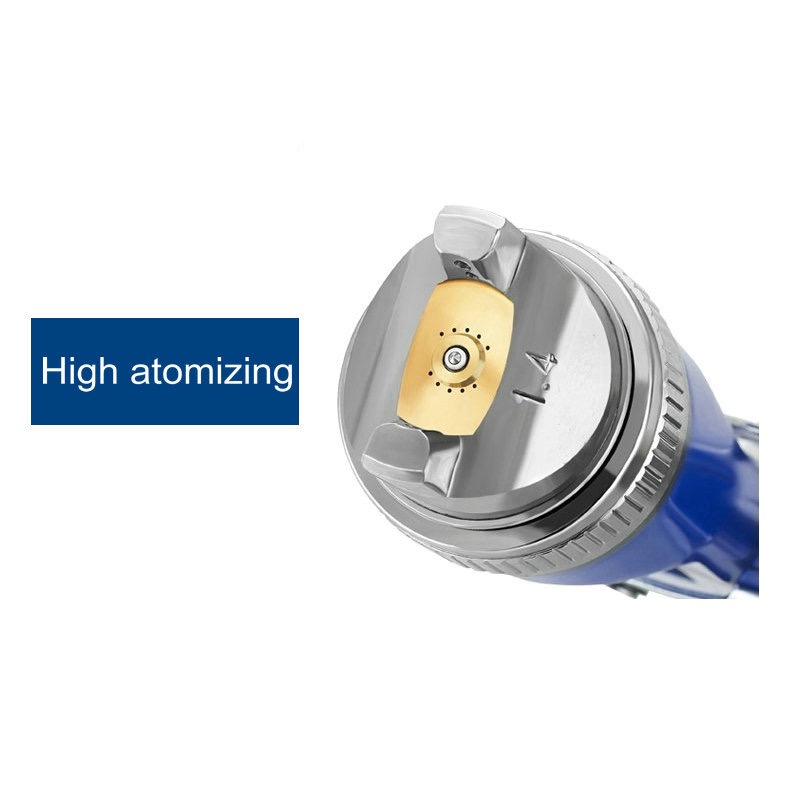

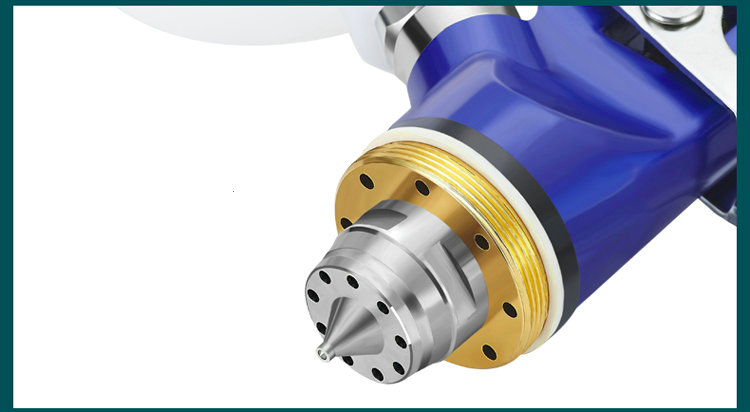

  • Multi-purpose Precision Airbrush: With 1.4mm or 1.7mm stainless steel fluid needle and nozzle, corrosion resistant.
  • Large Capacity of 600ml Feed Cup: Can meet different needs of nice and effective spraying.
  • Superior Quality Spray Gun: Better than 75% transfer efficiency with less than 10% psi output pressure and complies with environmental regulations.
  • Wide Range of Applications: Widely used in industrial products paint coating, furniture painting, wall painting, cars painting, factory spray paint.


Color: Blue

Material: Aluminum + Copper + Stainless Steel + PVC

Feed Type: Gravity Feed

Nozzle Diameter: 1.4mm / 1.7mm (Optional)
Spray Width: 230mm
Best Spray Distance: 200mm / 7.87in
Standard Working Pressure: 50-70PSI
Working Pressure: 0.5MPa
Intake Screw: 1/4"
Spray Control: External Control
Cup Capacity: 600ml
Air Consumption: 1.6-4.0 CFM
Compressor Required: 2-3HP
Cup Size: 170 * 110mm / 6.69 * 4.33in (H * Dia.)

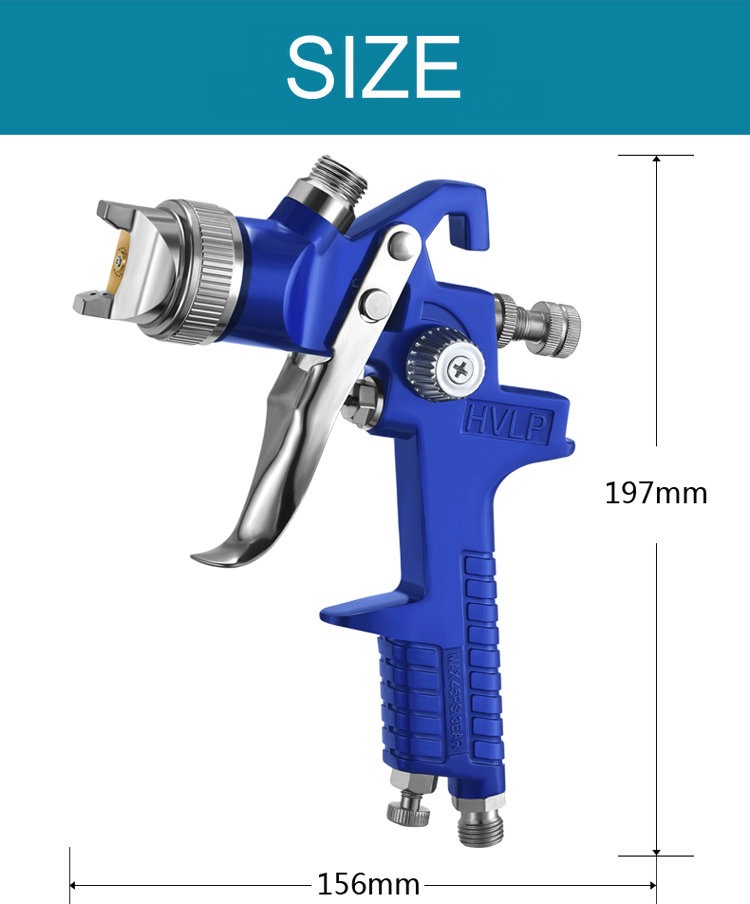

Size of Spray Gun: Approx.160 * 40 * 185mm / 6.30 * 1.57 * 7.28in
Weight of Spray Gun: Approx.586g / 20.67oz (With Cup)
Package Size: Approx.22 * 13.5 * 13cm / 8.66 * 5.31 * 5.12in (L * W * H)

Package Weight: Approx.792g / 27.93oz
